Optimized for multi-100W to kW laser systems

Our Faraday rotators and isolators are designed for laser systems operating in the multi-100 W to kW power range at 1030 nm and 1064 nm. A key feature is the direct soldered connection of the crystal barrel surface (KTF or TGG) to a water-cooled heatsink, realized using a flux-free soldering process. This enables highly efficient thermal management and minimal thermal shift, even at highest optical loads. Thanks to our proprietary magnetic field design and the use of soldering technology, we offer stable, high-performance solutions for applications where standard components are no longer sufficient.

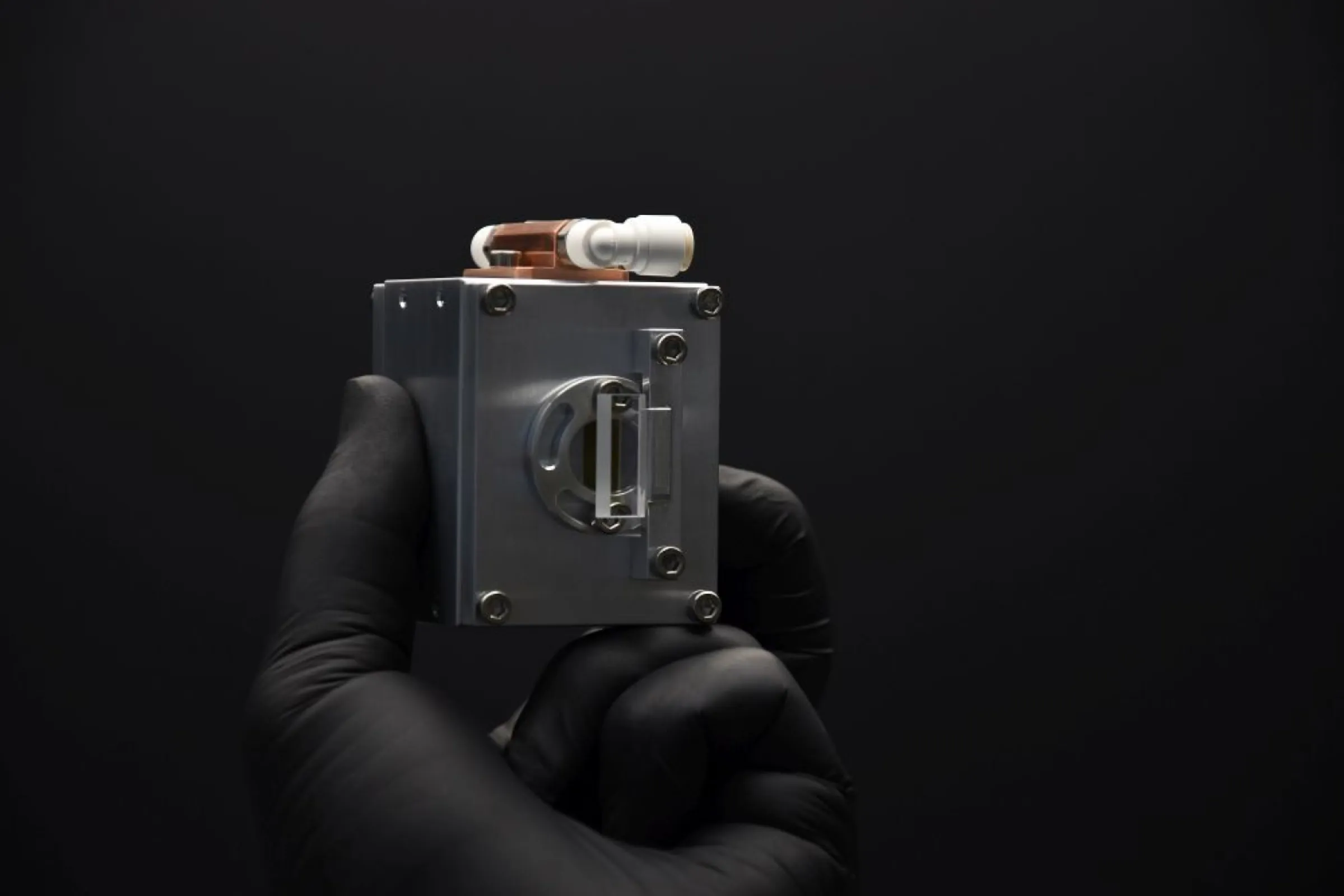

• Soldered KTF crystals with integrated water cooling

• Slab and rod crystal geometries

• Power rating: Multi - 100W to kW

• max Aperture: Rod (dia 15mm / slab 15x25 mm²)

• Crystal material: TGG/KTF

• Wavelength: 1030 nm / 1064 nm

• Transmission: > 95% Extinction ratio: > 30 dB

• Damage threshold: 10J/cm² at 10 ns, 1J/cm² at 8 ps
