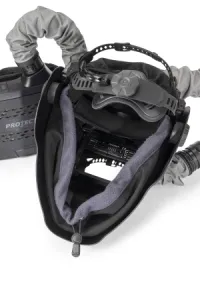

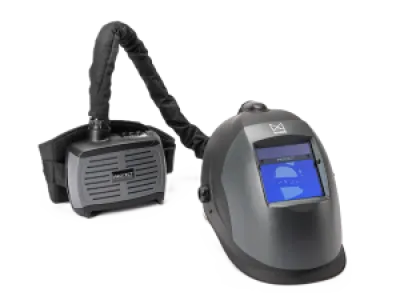

MAXIMUS Trooper Air - Laser safety helmet for hand-held lasers and all welding applications, with permanent laser protection and switchable, automatic darkening filter (ADF).

The helmet is suitable for welding work and mechanical work with angle grinders.

Certified according to

• ISO 16321 and EN 207

• 1000-1100 D LB7 + IR LB8 PF CE (OD 8+)

• 16321 PF W2/4-8/9-13 V2 E 1-M

• ADF

  • VLT (A) 19 % - open, light condition

  • Shade 4-8/8-12 automatic glare protection

  • Fast ADF switching times 40 µs and long service life

  • field of vision: 96 x 46.5 mm, wide field of vision due to short eye distance to the ADF

  Additional features of the helmet

  • High temperature resistant aluminum bowl 600 °C

  • Flexible and adjustable head holder

  • Ergonomic design

  • Helmet weight: 624 g (lightest helmet)

  • Weight with PAPR: 1020 g

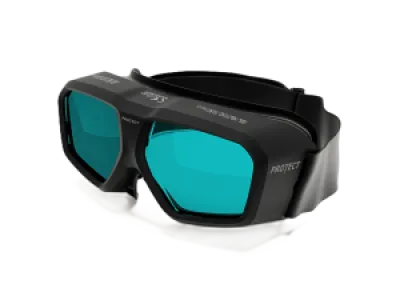

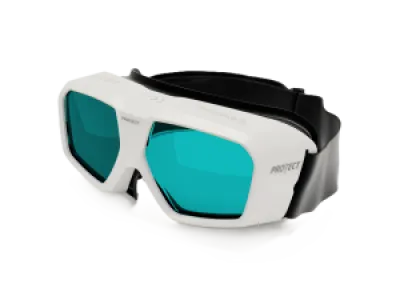

The COVERLIGHT is a modern laser safety goggles frame made from a light aluminium alloy with coating. Thanks to the all-round soft, flexible, rubberized frame made from a special rubber, these goggles are completely sealed and offer maximum protection. The rubberized frame is easily wiped clean and can be replaced if necessary and ensures optimum ventilation, which prevents the goggles from fogging up. The laser safety goggles can be worn over prescription glasses and the adjustable elastic head band offers perfect wearing comfort even for long working periods.

The Laser Safety Filter 0155 is a broadband laser safety filter for powerful lasers like Ti:Sapphire (800 nm), Diode (808 nm - 940 nm), Yb:YAG/Disc (1030 nm), Nd:YAG (1064 nm), Fiber (976 – 1080 nm), Telecom (1320 nm) and CO2 (10600 nm), but the filter also covers additional laser wavelengths. The laser safety filter consists of a turquoise, laminated mineral glass, and offers a visual light transmission (VLT) of 45% despite its large bandwidth. The laser safety filter is CE certified in accordance with laser safety standard EN 207.

Wavelengths Protection levels (EN 207)
>700-750 DIRM LB7 (OD7+)
>750-1200 D LB7 + IRM LB8 (OD8+)
>1200-1240 DIRM LB7 (OD7+)
>1240-1285 DIRM LB6 (OD6+)
>1285-1340 DIRM LB5 (OD5+)
9000-11000 DI LB5 (OD5+)
PF CE

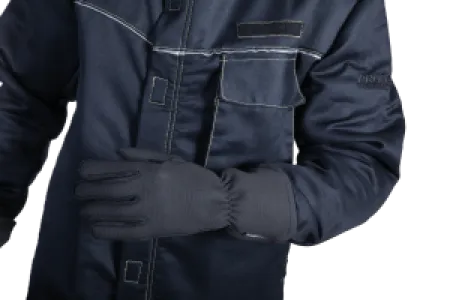

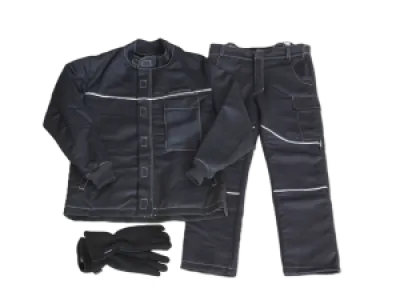

The robust BODYGUARD protective clothing has been developed for the high demands of industry and similar processes involving heavy use. Typical areas of application for protective clothing in industry and trade include material processing involving MIG laser welding, cutting processes, and any work that may generate sparks and heat.

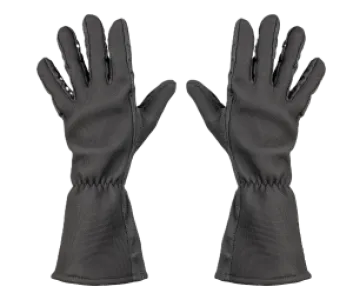

BODYGUARD protective clothing is perfectly matched and thus offers protection for the torso, arms, legs, and head. Together with the BODYGUARD glove variants, the user is optimally protected against harmful influences.

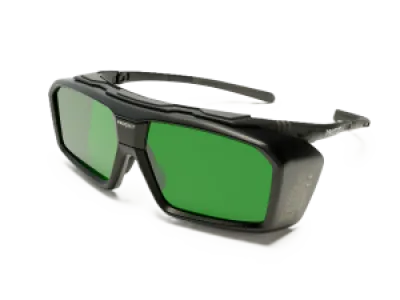

The STARLIGHT X2 laser safety goggles are lightweight, elegant laser safety goggles with a frame made of a special polymer. The feather-light frame offers an excellent fit thanks to individually adjustable temples, a rubber lip in the upper forehead area and additional side protection thanks to the wrap-around design.

The Laser Safety Filter 0195 is suitable for protection in the visible range of wavelength beginning from 600 nm. This includes HeNe (633nm) and Diode (650nm). This filter can also be used for alignment work in the range between 630-700 nm for laser with a maximum power of 100mW. The laser safety filter consists of a green filter made of special plastics, and offers an visual light transmission (VLT) of 25% and a minor filter thickness. The laser safety filter is CE certified in accordance with the requirements of EN 207 and EN 208.

Wavelenghts Protection levels
600-630 D LB1 (OD1+)
>630-700 D LB2 (OD2+)
>700-720 D LB1 (OD1+)
PF CE

EN 208: 0,1W  2*E-5J  630 - 700 RB2

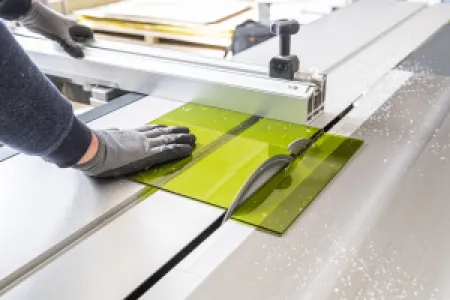

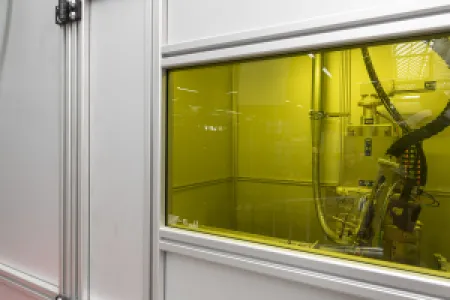

Laser protection windows enable your employees to safely observe the processes in a laser system. Regardless of whether you want to integrate the laser protection windows in machine enclosures or in movable walls, we offer you the right, tested protection for your laser system, for your laser equipment and for your laser application. Depending on the desired protection level or window size, you can choose between windows made of glass or plastic. In addition to a variety of standard sizes, custom cuts are also possible thanks to our in-house production.

The 0242-3 laser protection filter is particularly suitable as laser protection for powerful Diode (940 – 980 nm), Yb:YAG/Disk(1030 nm), Nd:YAG (1064 nm) and Fiber (976 – 1080 nm) lasers. However, other lasers are also covered by the filter. The laser safety filter is made of a special red plastic and has a daylight transmission of approx. 57% at low thickness. The laser safety filter is qualified according to the regulations of EN 12254.

Protection levels according to EN 12254:
D AB6 + IRM AB7 (OD 7+) >880 - 900
D AB6 + IR AB7 + M AB8 (OD 8+) >900 - 1070
DIRM AB6 (OD 6+) >1070 - 1075
PF CE

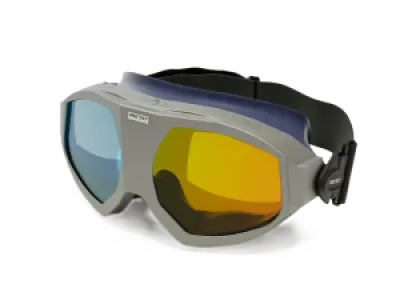

The GLADIATOR is a modern laser safety goggles frame made from a light aluminium alloy. Due to a soft face cover, made of a special rubber, these goggles are closed, all around. The face cover is wipeable and easily changeable, if needed. Spacious air slots provide optimal air circulation and prevent fogging of the glasses. The laser safety goggles can be worn over prescription glasses and the adjustable elastic head band offers perfect wearing comfort even for long working periods.

The laser safety filter 0234 is particularly suitable as laser protection for powerful Supercontinuum lasers. The laser safety filter consists of a turquoise mineral glass with additional dielectric layers and impresses with a daylight transmission of 25% despite the wide-ranging coverage. The laser safety filter is CE certified according to the regulations of DIN EN 207.

Wavelengths Protection levels
570-578 DIRM LB1 (OD1+)
>578-585 DIRM LB3 (OD3+)
>585-590 DIRM LB5 (OD5+)
>590-1000 DIRM LB6 (OD6+)
>1000-1030 DIRM LB7 (OD7+)
>1030-1400 D LB7 + IRM LB8 (OD8+)
>1400-11500 DI LB4 + R LB3Y + M LB5Y (OD4+)
PF CE

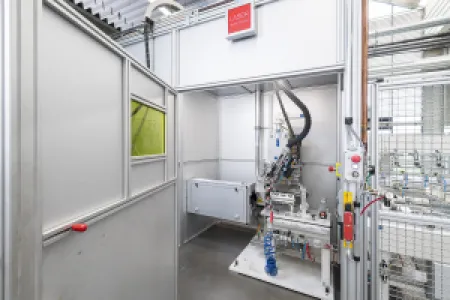

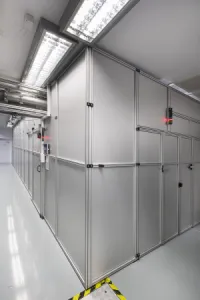

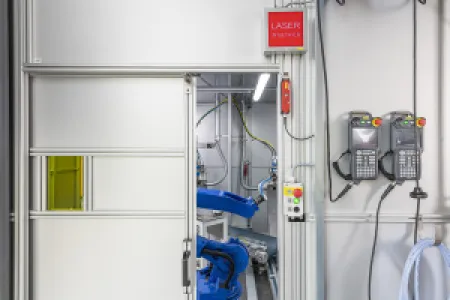

All materials of the protection cabins installed by us are tested according to
EN 12254. The construction takes place according to your specifications and the structural conditions at the assembly site. Our laser protection cabins are conform to EN 60825-4. On request, we would be pleased to advise you regarding further tests and requirements.

Further individual configurations such as ventilation, security and locking systems, window count and placement, warning lights and signs, roof and wall constructions as well as coatings are possible. Our customer advisory service will be delighted to provide you with more information.

Protection levels according to EN 12254:

D AB10 + IR AB5 + M AB6Y                 180 – 315
DR AB7 + I AB8 + M AB10                    >315 – 1050
D AB7 + I AB8 + R AB6 + M AB10       >1050 – 1400
DIR AB4 + M AB5Y                                >1400 – 11000
PF CE

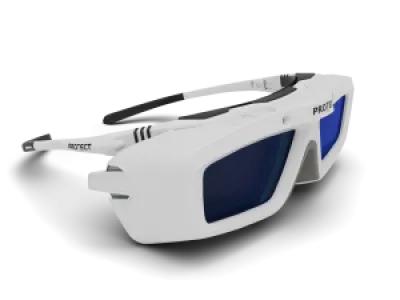

Our shutter safety eyewear is the optimal solution for IPL applications. The shutter technology reacts in microseconds to the IPL flash, darkens the lenses lightning fast and thus protects the wearer against possible eye injuries. It combines excellent passive vision with high protection during the IPL flash. Another special feature of the Shuttor goggles is that they can be combined with our ONTOR laser safety goggles.

• True color, automatic glare protection for IPL applications

• Switching time: 150 µs

• Weight: 92g

• Passive (disabled): Shade 2

• Active (enabled): Shade 10

• Electronics with on/off switch

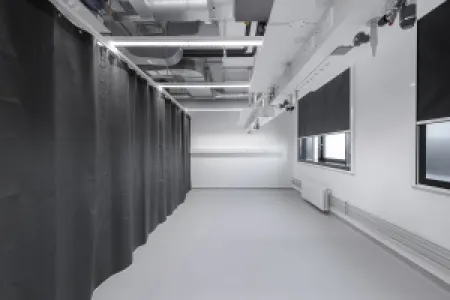

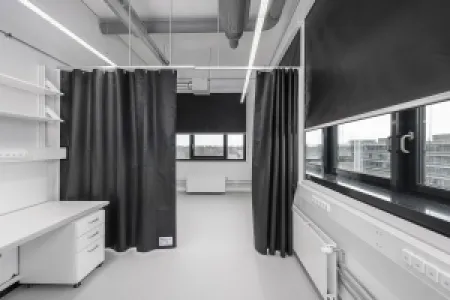

Thanks to our in-house production, we can offer custom curtains in various sizes and shapes.

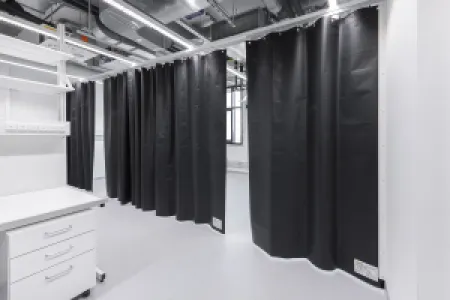

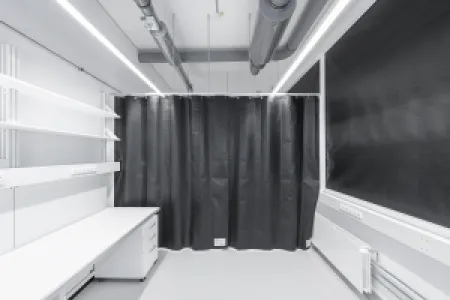

If entire room areas need to be protected from laser radiation, laser protection curtains are used. These serve as protection against scattered radiation as well as direct irradiation in laser applications with low powers. All our materials used are tested and certified on the basis of EN 12254.

isoPROTECT-Budget

Weight: approx. 1,0 kg/m²
Material thickness: approx. 0.8 mm
Color: black/carbon, white/carbon or black/white

Protection level according to EN 12254:
D AB8 + IR AB3 + M AB5Y                180 - 315
D AB5 + I AB7 +  R AB6 + M AB8     >315 - 1050
D AB4 + I AB7 +  R AB6 + M AB8     >1050 - 1400
DIR AB2 + M AB4Y                             >1400 - 11000
PF CE

isoPROTECT-Budget Extra

Weight: approx. 1,5 kg/m²
Material thickness: approx. 1.2 mm
Color: black/carbon

Protection level according to EN 12254:
D AB8 + IR AB3 + M AB5Y              180 - 315
D AB6 + IR AB7Y + M AB8     >315 - 1050
D AB5 + IR AB7Y + M AB8     >1050 - 1400
DIR AB3 + M AB4Y                          >1400 - 11000
PF CE

isoPROTECT-HighTech

Weight: approx. 2,2 kg/m²
Material thickness: approx. 2.2 mm
Color: black, white or silver

Protection level according to EN 12254:
D AB9 + IR AB4 + M AB5Y             180 - 315
D AB7 + IR AB6 + M AB8Y   >315 - 532
D AB7 + IR AB7 + M AB8Y     >532 - 1050
D AB6 + IR AB7 + M AB8Y >1050 - 1400
D AB3 + IR AB4 + M AB3Y            >1400 - 11000
PF CE

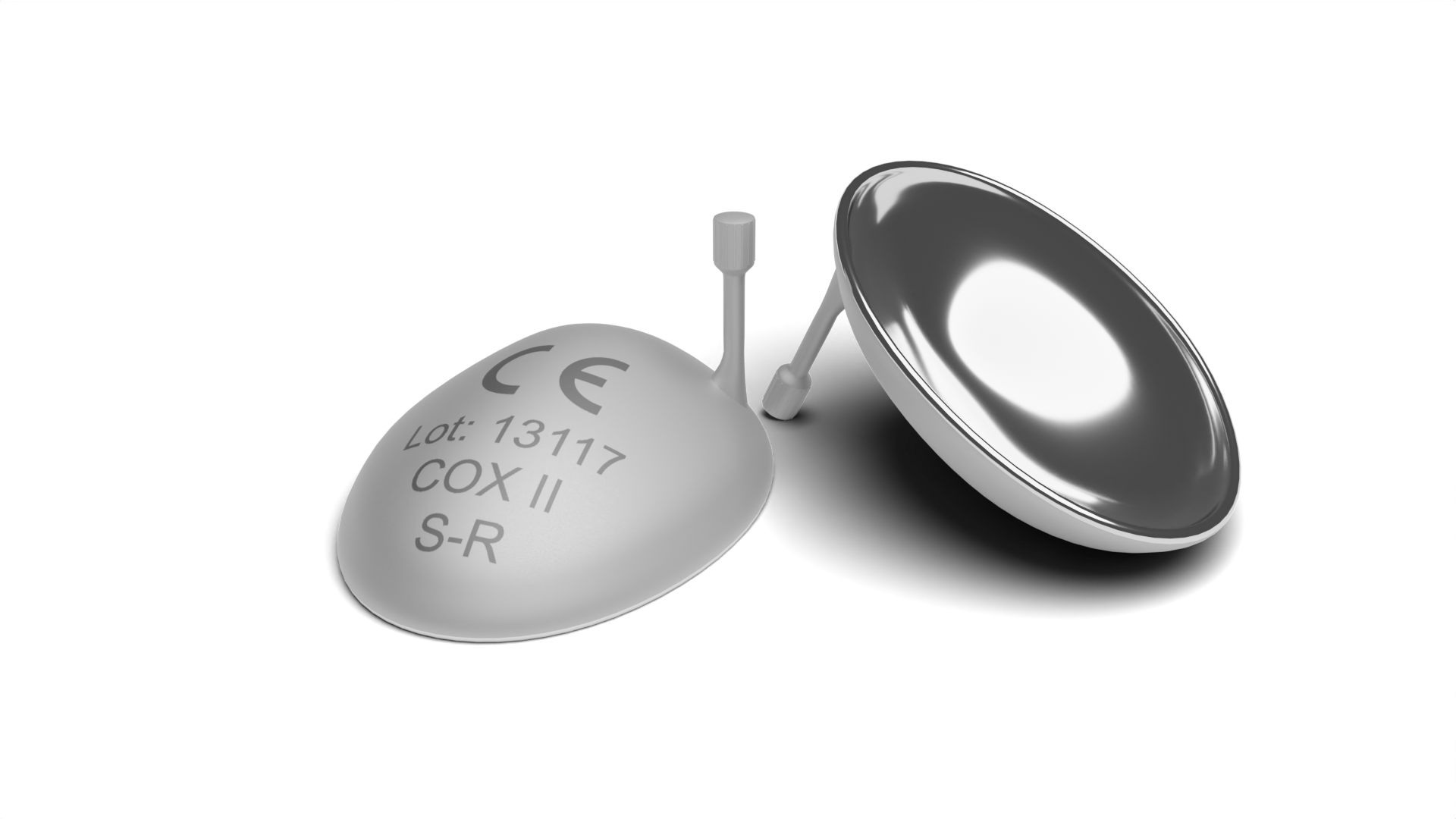

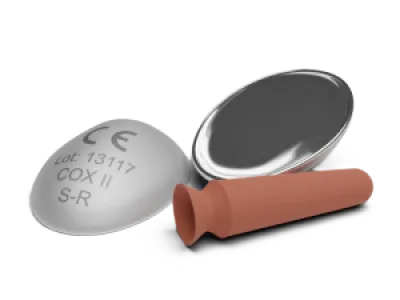

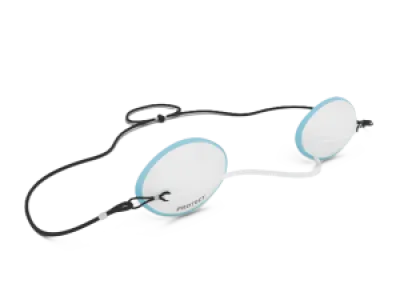

Laser applications are playing an increasingly important role in modern medicine. As a result, there is a growing need for products that reliably protect the eyesight of patients, medical staff and doctors. Whether medical safety spectacles or magnifying glasses - we have the right solution for your requirements.

Ionizing and non-ionizing radiation is used in the various specialist areas of medicine. Here in particular, it is essential to have suitable protective products for employees and patients, as well as for shielding the practice rooms.
PROTECT-Laserschutz GmbH offers you various laser, UV and IPL products and will be happy to advise you on the selection of suitable products.
