CREATIVE LED GmbH
Booth number: 4205-21
www.creativeled.com
About us
The CREATIVE LED GmbH® established 2004 as R&D fabless company for optoelectronic parts with high customized properties.
The product range contains LEDs, Photodiodes and Phototransistors in THD and SMD packages.

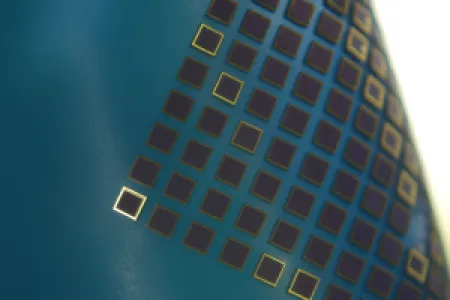

Development of chip designs, package design in plastic packages or ceramic LTCC, Al2O3, and AlN are possible.

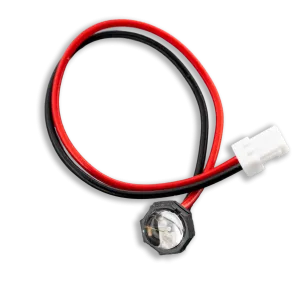

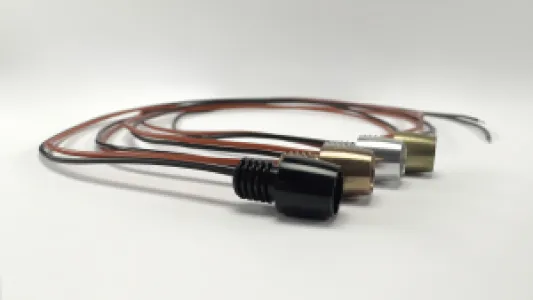

Special inquires as wired LED, e.g. for Metrology Devices;, in metal housing cased LED or other specifications of constructions are available. We have a broad range of test equipment for all necessary measurement of opto-characteristics in the WL range of 200nm upto 4000nm in our test labor.
We can offer analysis of obsolete parts or for replacements with higher accuracy or performance. E.g., 1-meter integrated sphere or a high-resolution goniometer with 0,02 degree angle steps.
The design of high-accuracy tools for OEM production supports the high quality of our mostly niche-market product in the range of 4°…130° viewing angle in low annual quantities.
Address
Alte Dorfstr. 1E
18211 Retschow OT Glashagen
Germany
E-mail: support@creativeled.com
Phone: +49 38203 778472
Internet: www.creativeled.com
Contact person:
Products & Services

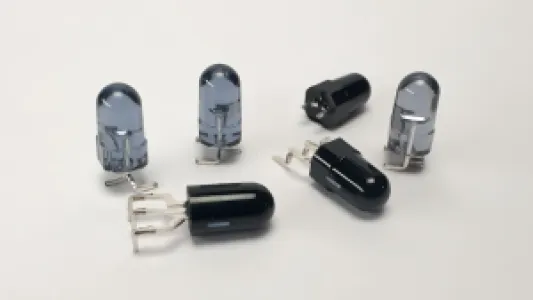

• THD LEDs as Second Source
Standard through-hole LEDs as replacements for obsolete or phased-out types, often with enhanced performance.
• SMD LED 3535 (Ceramic, white or black)
Custom rectangular LTCC packages with up to 7 wavelengths from 250 to 1650 nm.

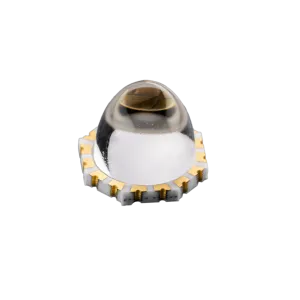

• SMD LED 9090 (Ceramic, white)
Octal LTCC packages with up to 14 integrated wavelengths covering 250 to 1650 nm.
• High-Precision CQR6 LEDs (THD)
Narrow beam angles from 4 to 25 degrees for precise optical systems.
• Customized LEDs with selectable beam angle
Full angles from 4 to approx. 130 degrees, tailored to application needs.
• THD Photodiodes and Phototransistors
With base contact, available with full angles from 4 to 130 degrees.
• SMT Photodiodes and Phototransistors
Widths of 1.85 mm or 2.4 mm, full angles 4 to 130 degrees.
• InGaAs Photodiodes & matching IR LEDs
Designed for industrial IR sensing and measurement applications.

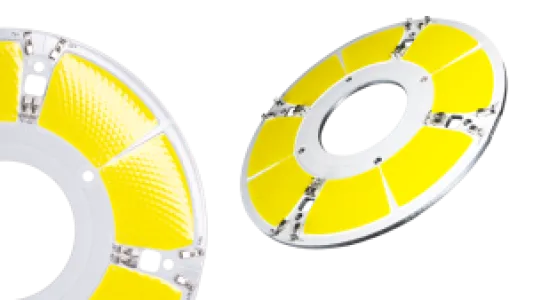

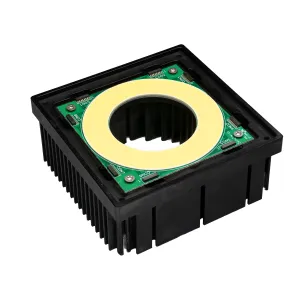

• LED Light Sources for Illumination
Mixed spectra from 250 to 1650 nm, ideal for scientific and industrial setups.
• High-Brightness Flash Lights
Up to 150,000 lumens, available in fully customized designs.

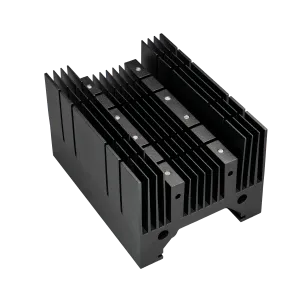

• Heatsinks
In-house Heat sink with flexible mountable length in steps of 100mm.
• Services
Bending, taping, cutting, and wire-soldering according to customer drawings.
