About us
MOEWE Optical Solutions GmbH, based in Mittweida (Germany), develops and manufactures high-speed polygon scanner systems and optical solutions for industrial laser processing.
Founded in 2018 as a spin-off from Mittweida University of Applied Sciences, MOEWE combines expertise in optics, laser technology, mechanics and digital control.
Our PM-series polygon scanners offer large or small apertures, small spot sizes and extremely fast deflection speeds for precise, high-throughput laser applications.
With a focus on innovation, reliability and “Made in Germany” quality, MOEWE delivers advanced polygon scanner systems that bring research-grade technology into industrial production.
We look forward to meeting you at the exhibition and discussing how our solutions can enhance your laser processes.
Address
Leipziger Str. 27
09648 Mittweida
Germany
E-mail: office@moewe-optik.de
Phone: +49 3727 9989407
Internet: moewe-optik.de/
Contact person:
Manja Hänsel
Communications
E-mail: haensel@moewe-optik.de

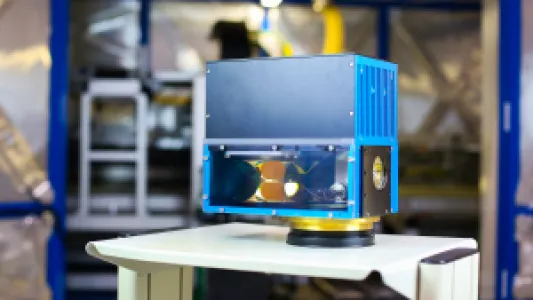

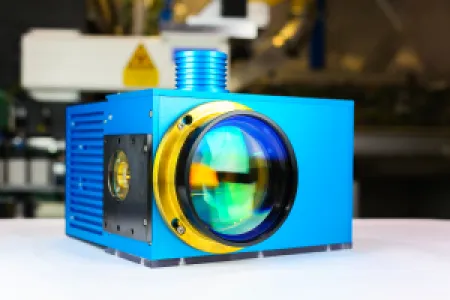

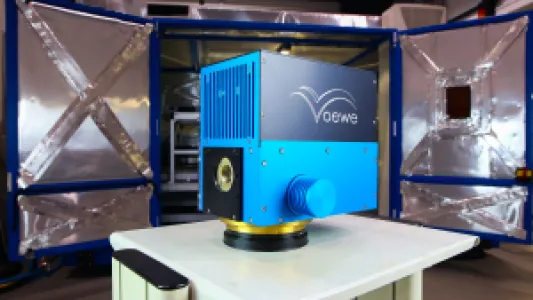

PM 30
Your Benefits
Two-dimensional beam deflection enables stand-alone operation or integration into production lines
Patented low-distortion double polygon mirror
Large free aperture of 30 mm
Multiple digital and analog I/O ports, Ethernet
High laser power up to 5 kW cw
Ultra-fast scan speeds across the entire scan field
Synchronization of two scanners to one laser source (optional)

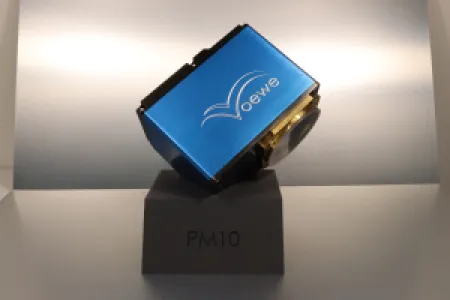

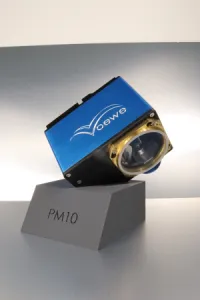

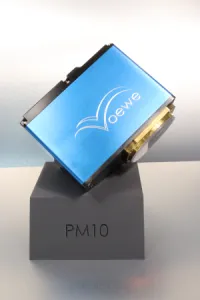

PM 10
Your Advantages
Two-dimensional beam deflection allows standalone operation or integration into production lines (axis, roll-to-roll)
Synchronization of two scanners on one laser source (optional)
Wide range of applications: laser marking, microstructuring, surface cleaning, drilling, cutting, spot welding, engraving (2.5D), and more
Technical Details
Dimensions: 170 × 140 × 135 mm
Weight: < 10 kg
Clear Aperture: 10 mm
Max Lines/s: 666 Hz @ 5,000 rpm (8F) / 1,000 Hz @ 5,000 rpm (12F)
Power Supply: 24–48 V DC, max. 150 W
Interfaces: 1× Gbit Ethernet, digital Laser I/O, analog I/O, GPIO / Axis I/O
FPGA On-board Processing, On-board Memory 1–2 GByte

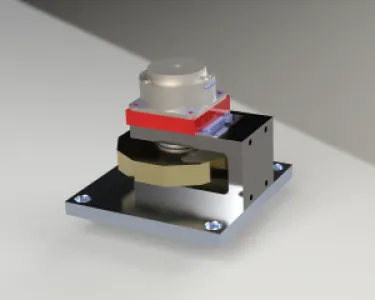

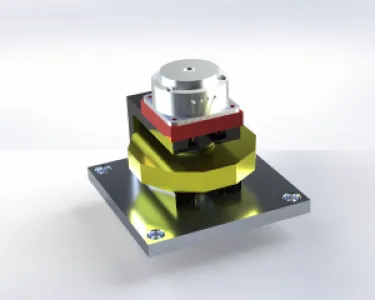

PM Unit
Your Benefits
High scan rates with compact design
Large free aperture for flexible optics integration
Robust control inputs (optocoupler-isolated)
Status display via LEDs or optional UIs
Multiple interfaces – easy integration
Optional encoders for constant rotation and homogeneous processing
Technical DetailsDimensions: 110 × 90 × 85 mm
Weight: approx. 1 kg
Speed: 5,000 / 10,000 rpm (on request)
Free aperture: up to 20 mm
Supply: 12–36 V DC, max. 100 W
Operating temperature: +18 … +30 °C
Relative humidity: 20 … 90 %
Interfaces: PWM (FRQ), ENA, MODE, Speed-FB, nFAULT, USB
