About us
INNOVATING PHOTONICS

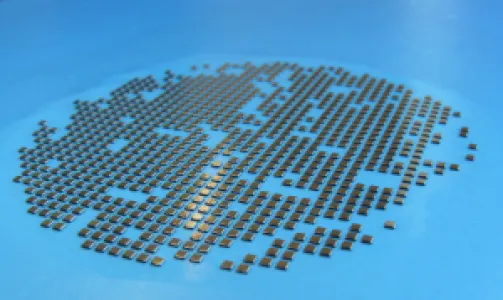

EPIGAP OSA Photonics GmbH stands for excellent know-how in the field of semiconductor technology and production of LED chips with a wide wavelength range. This is complemented by production of various SMDs in high power and standard configurations.
Due to their performance, quality and reliability, our innovative optoelectronic components play a key role in many industries and can be found in industrial sensors as well as in products for security technology and, last but not least, in diagnostics sensors, biotechnology and medical technology applications.
We consistently focus on the special requirements of our customers and meet their complex demands by manufacturing series in small and medium quantities.
With our experienced team we realize customized solutions with empathy and precision in development as well as in serial production.
Address
Köpenicker Str. 325
12555 Berlin
Germany
E-mail: sales@epigap-osa.de
Phone: +49 30 65763764
Internet: www.epigap-osa.de
Contact person:
Products & Services

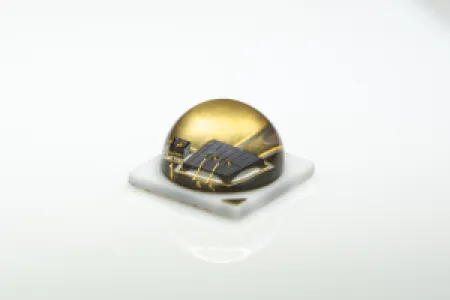

High Power SWIR-SMDs
We manufacture high-performance SMDs on ceramic substrates in the wavelength range from 700 - 2300 nm.
The SMDs can be supplied with a 20° lens or a flat encapsulation. This selection allows the components to be customized for use in specific lighting applications for industrial sensors.
High power 460 SMDs are assembled with silikone glob top for optimizes extraction efficiency. Special ceramic submount offers excellent heat dissipation.

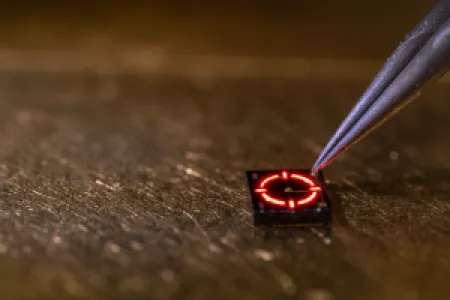

Point Sources and Display Chips
We produce chips with smallest light spots (Ø 25µm, Ø 50µm, Ø150µm) with red or infrared wavelengths (625nm, 650nm & 850nm) for high precision miniature light barriers or monolithic displays - reflection-free, long-term stable and without disturbing bond pad in the field of view

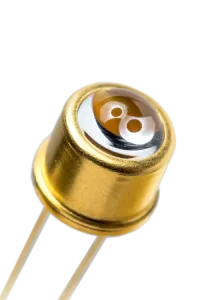

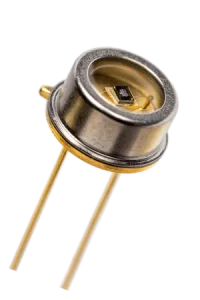

LEDs in TO package
Traditional TOs we are mounting with lens cap or flat window cap. These hermetically sealed LEDs are reliable even at temperatures up to 120°C and work perfectly in various optical encoders.
UV LEDs in TO-Packages or SMDs are available for analytical applications in UV-C and UV-B. (Wavelength are 255 nm, 265 nm, 275 nm, 308 nm, 325 nm and 340 nm)
Services
We support flexible and high-precision bonding of various chip types and substrates. We place components on indicidual packages or utilizing flexible Chip-on-Board (CoB) processes.
We provide full-spectrum testing of optoelectronic components—covering electrical, optical, reliability, and environmental performance.
Point Source LED for Sensors
reflection-free, long-term stable and without disturbing bond pad in the field of view.
FEATURES
- Peak Wavelenghts: 625 nm | 655 nm | 850 nm
- Possible Diameters: 25 μm | 50 μm | 150 μm
APPLICATIONS
- Light Barriers
- Encoder
- Optical Sensors
High Power SWIR SMDs
Varieties of lenses with defined viewing angles enable universal usage of specific illumination in industrial sensors.
FEATURES
- Size 6.0(L)x4.6(W)x4.3(H) mm
- Circuit substrate: AIN Ceramics
- Devices are ROHS and REACH conform
- Taped in 16 mm blister tape
- All devices sorted into intensity classes
APPLICATIONS
- Machine Vision
- Sorting Machines
- Hyperspectral Imaging
TO-LEDS for Encoders and Sensors
FEATURES
- High-power, high-speed infrared LED
- In hermetically sealed TO-46 package
- Mounted on reflector header for beamforming
- Peak Wavelenghts: 810 nm | 850 nm | 880 nm
APPLICATIONS
- Optical Communication
- Safety Equipment
- Encoders

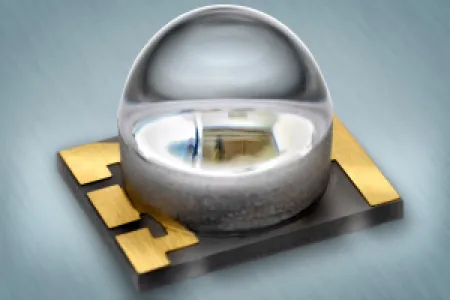

High Power SWIR SMDs - Next generation 460 series
New high power 460 SMDs are assembled with silikone glob top for optimizes extraction efficiency. Special ceramic submount offers excellent heat dissipation.
