Intelligent power supply open for communication with AI applications

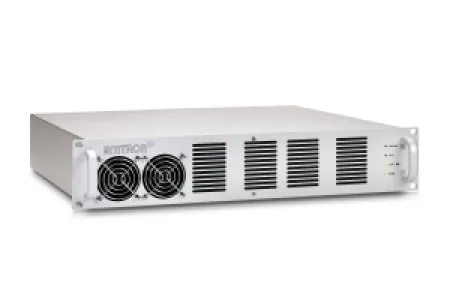

The new CS120HV high-voltage series power supplies offer an impressive output voltage of up to 130 volts at up to 40A CW (continuous wave) and are extremely energy efficient in all applications where single emitter laser diodes are deployed. The AMTRON CS120HV is characterized by a precise power supply over the entire output range, ensuring reliable and stable operation - essential for use in material processing, medical technology, the automotive industry and research.

Innovation and safety at the highest level

The AMTRON CS120HV offers outstanding performance and versatility. A particular strength is the extremely short rise time, which enables a steep current rise in the microsecond range in pulsed operation, guaranteeing precise power output at high speed. The integrated operating modes, such as constant laser power control, gated mode, trigger mode and single shot, offer the user high added value and maximum flexibility for different laser processes. All individual settings for the CS120HV can be configured quickly and easily via the user-friendly, intuitive web interface, which AMTRON supplies as standard with all power supplies.

AMTRON places a major focus on safety, protection and durability and the CS120HV sets new standards in safety features, offering a comprehensive range of protective mechanisms for both the device itself and the laser diodes. Short-circuit and reverse current protection ensure maximum operational safety, while the AMTRON-developed current tear-off protection reliably safeguards the valuable laser diodes in the event of a sudden power failure.

Thanks to AMTRON's engineering expertise, it was possible to incorporate ISO 13849 performance level “e” directly into the design of the CS120HV. The devices are equipped with a built-in redundant power cut-off function (redundant power cut-off / interlock) and are suitable as a turn-key solution for safety-critical applications. This was confirmed as part of the DEKRA (German notified body) certification.

The CS120HV provides flexibility and supports modern communication standards. It features digital control via LAN with an integrated HTTP/web server and also supports Ethernet frames (UDP) and TELNET, secured by password-protected user levels. Additionally, its versatile digital and analog I/Os facilitate trigger signals, laser control, temperature monitoring and power and current regulation. These capabilities ensure seamless integration into AI-driven systems and complex automation processes.

The AMTRON CS120HV can be used as a desktop device or integrated into rack systems to meet different customer-specific requirements. The combination of performance, security and flexibility makes the CS120HV an ideal solution for a wide range of applications.

The CE-compliant CS120HV is available with immediate effect. For further information, please contact the AMTRON engineering team at sales@amtron.net.

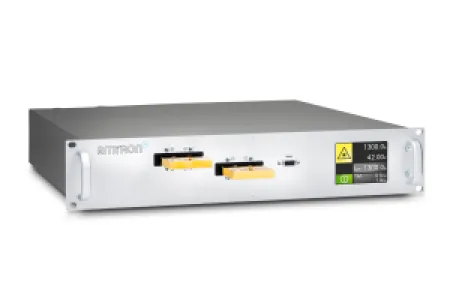

Highest current pulses for demanding applications!

Plasma accelerators or laser-based inertial confinement fusion will require higher output power of diode laser stacks more than ever.

The CM380P drivers deliver current in the kiloampere range with sharp pulse edges and high duty cycle.

Output current up to 2400 A, output voltage up to 130 V. High repetition rate variants with up to 50 % duty cycle available.

Pulse length is up to 1 ms with down to 10 µs rise time.

The CE- and ISO 13849 performance level “e” compliant CM380P is available within different variants. For further information, please contact the AMTRON engineering team at sales@amtron.net.

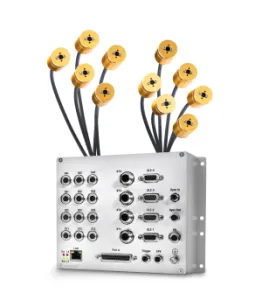

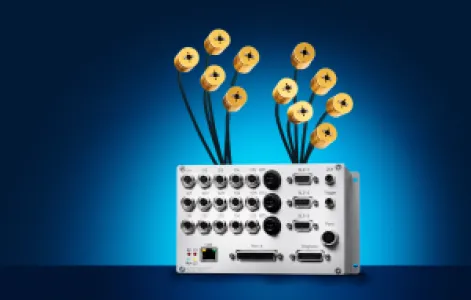

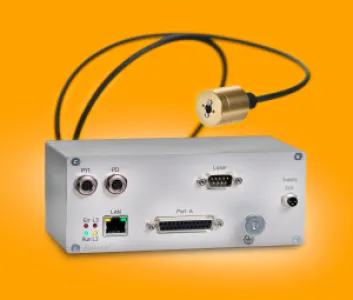

The AMTRON Pyrometer series SE400 offer highest measurement speed and noise immunity even at low process temperatures. Their PY200 series sensors contain the complete analog-to-digital signal conversion and an integrated flash memory for parameters. Compact control units series CU500 are available with many different interface options.

Highlights are the simultaneous processing of up to 12 sensors and the interfacing to galvanometer scanheads for exact positon readout.

• Suitable for plastic welding, soldering, hardening, selective laser melting

• Closed loop control or logging of process temperature or radiation

• Detection rate up to 100kHz (depending on detection wavelength)

• Spatially resolved data acquisition in combination with either multiple pyrometers or galvanometer scanhead

• Robust signal transmission without the need of fiber cables (up to 20m)

• For stationary and hand-guided laser heads

The CE-compliant SE400 series is available within different variants. For further information, please contact the AMTRON engineering team at sales@amtron.net.

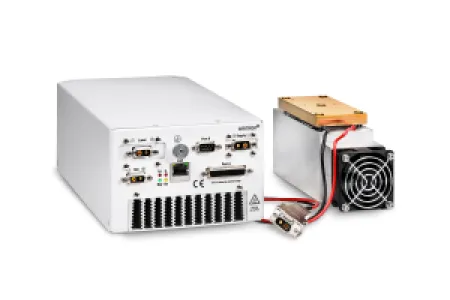

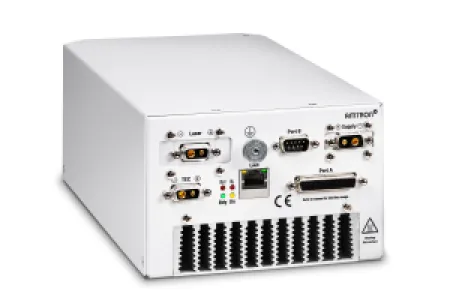

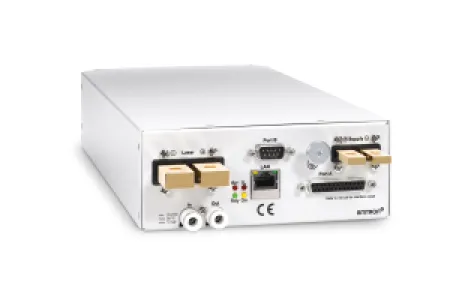

With various housings in paperback format, the new generation of CM100 models offer power values up to 24kW with top-class ratings:
The CM100 supplies diode lasers with up to 480A CW or up to 900A pulsed with an outstanding efficiency of up to 97%. When operating single emitter laser diodes, the high-resolution current variants reach voltages of up to 120V.

The entire monitoring mechanism is equipped for redundancy.

Safety of operation is certified according to EN ISO 13849 with the Performance Level e (PL e).
The browser based user interface is fully reworked and improved. Operation by touch screen is even more intuitive. It offers access to the convenient analysis tools in the CM100 software. High update rates allow the software to constantly provide an up-to-date view of the measured values, making it ideal for operation in digital Industry 4.0 production environments.

CM100 drivers can be used independently of the process to control diode lasers of different power and pulse width. Thanks to the low installation effort, commissioning is quick and easy in any application scenario.

The CE-compliant CM100 series is available within different variants. For further information, please contact the AMTRON engineering team at sales@amtron.net.
